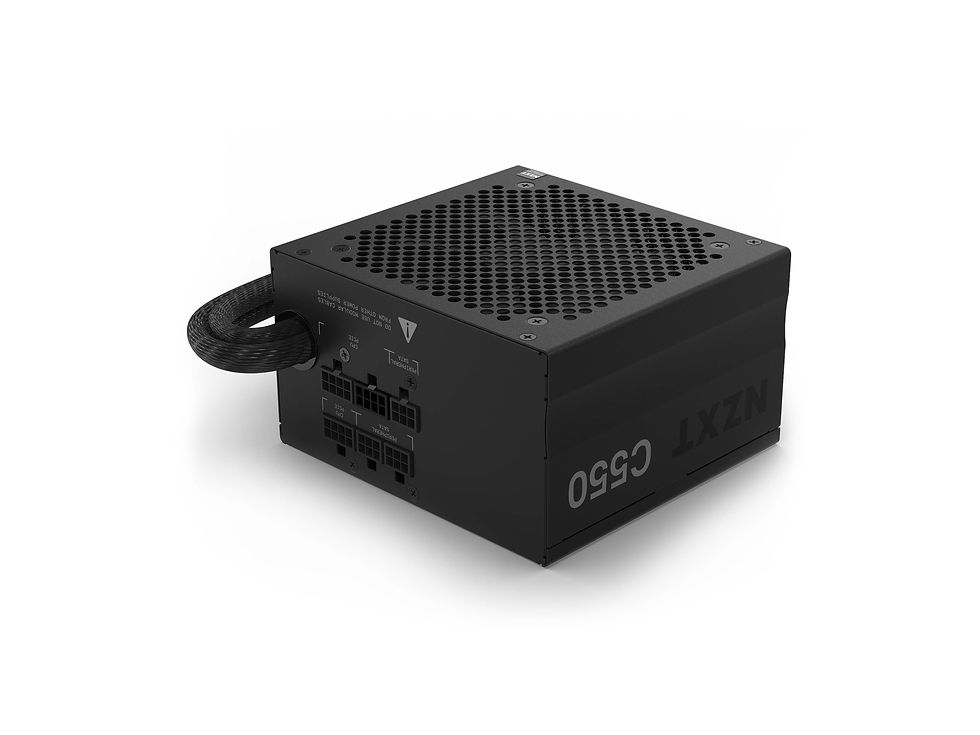

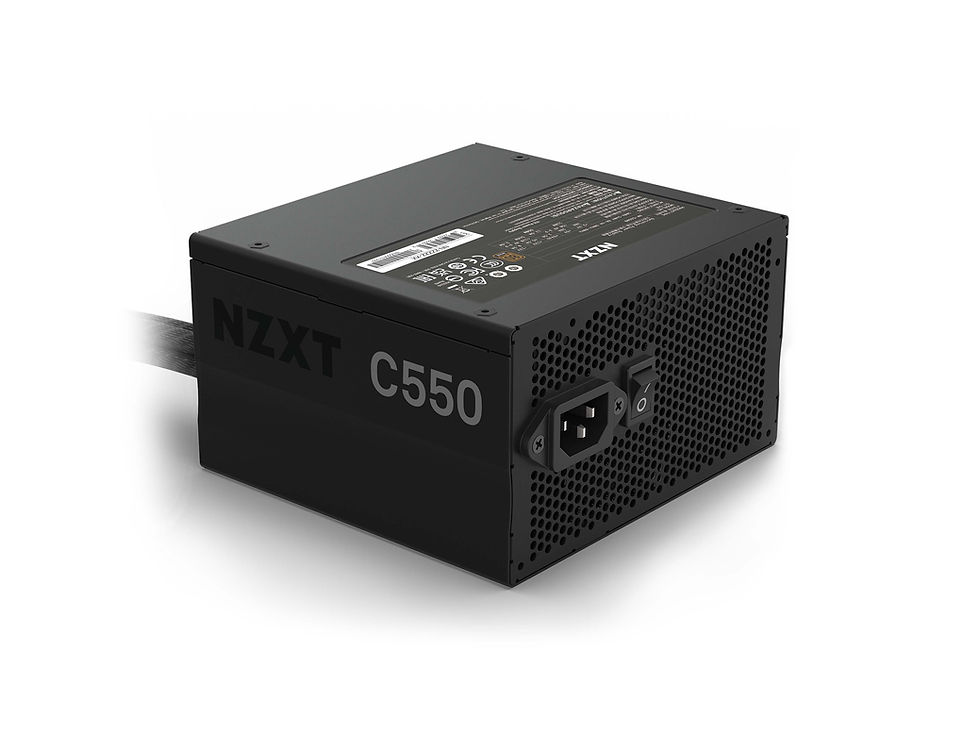

NZXT C550 Bronze

Key Specs
Dimensions: 150 x 140 x 86 mm
Materials: Steel, PCB and plastic
Compliance Standard: ATX12V v2.4 / EPS12V v2.92
AC Input Rating: 100V-240V 8A-4A 50Hz-60Hz

DC Output Rating
Voltage: +3.3V / +5V / +5VSB /+12V / -12V
Max Load: 20A / 20A / 2.5A / 45.5A / 0.3A
Voltage Regulation: ±5% / ±5% / ±5% / ±5% / ±10%
Ripple & Noise: < 50 mV p-p / < 50 mV p-p / < 50 mV p-p / < 120 mV p-p / < 120 mV p-p
Output Power (Watt): 110 / 110 / 12.5 / 546 / 3.6
Total: 550

Fan Specs
Dimensions: 120 x 120 x 25mm
Speed: 2400 ±10% RPM
Airflow: 72.90 CFM
Noise: <44 dBA
Bearing: FDB (Fluid Dynamic Bearing)

Energy Efficiency
Rating: 80 Plus Bronze
10% loading: 82%
20% loading: 83%
50% loading: 87%
100% loading: 83%

Operation
PF Correction: Active@0.96
MTBF: 100,000 hours
Operation Temperature: 0 to 40°C

Output Connector(s)
24-pin ATX Power: 1
8-pin CPU Power: 2
8-pin PCIe Power: 2
SATA Power: 2
Molex Power: 1

General
Regulations & Certifications (EMC & Safety): CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE /
Warranty: 5 years
Hazardous Materials: RoHS & China RoHS
